Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: JCUT
  • Model Number: 6090
  • Voltage: AC220V/50Hz
  • Power(W): 1.5KW
  • Dimension(L*W*H): 600X900X150mm (23.6X35.4X5.9 inch)
  • Weight: 800kg
  • Certification: CE,FDA
  • Warranty: 12months
  • After-sales Service Provided: Overseas service center available
  • Machine model: JCUT-6090
  • Machine body: whole cast iron
  • Guideway: linear guideway
  • Working Area (X*Y*Z): 600X900X150mm (23.6X35.4X5.9 inch)
  • Spindle: 1.5KW variable speed, water-cooled
  • Spindle rotating speed: 0-24000rpm/min
  • Driving mode: Ball screw
  • Drive motor: Stepper
  • Control software: Nctudio(optional:Mach3 or DSP)
  • Compatible Software: Type3, Art cut, Art CAM, master CAM software

Packaging & Delivery

Packaging Details export wooden case
Delivery Time 12 working days
Product Description

Cheap sale small CNC woodworking/advertisment/metal engraving and cutting machine JCUT-6090(600X900x150mm)

Product Application

advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.

Machine model
JCUT-6090
Machine body
whole cast iron
Guideway
linear guideway
Working Area (X*Y*Z)
600X900X150mm (23.6X35.4X5.9 inch)
Processing accuracy
0.03mm
Repositioning accuracy
0.01mm
Spindle
1.5KW variable speed, water-cooled
Spindle rotating speed
0-24000rpm/min
Max Moving Speed
8000mm/min
Working speed
0-6000mm/min
Driving mode
Ball screw
Voltage
AC220V/50Hz
Max. Power consumption
1.9KW
Drive motor
Stepper
Command
G.code , mmg , plt , uoo,HPGL
Control software
Nctudio(optional:Mach3 or DSP)
Compatible Software
Type3, Art cut, Art CAM, master CAM software
Pack dimensions
1400mm X 1250mm X 1600mm wooden trunk
Gross weight
800kg

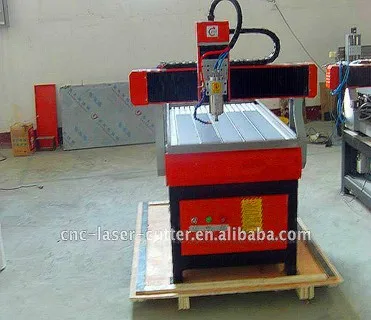

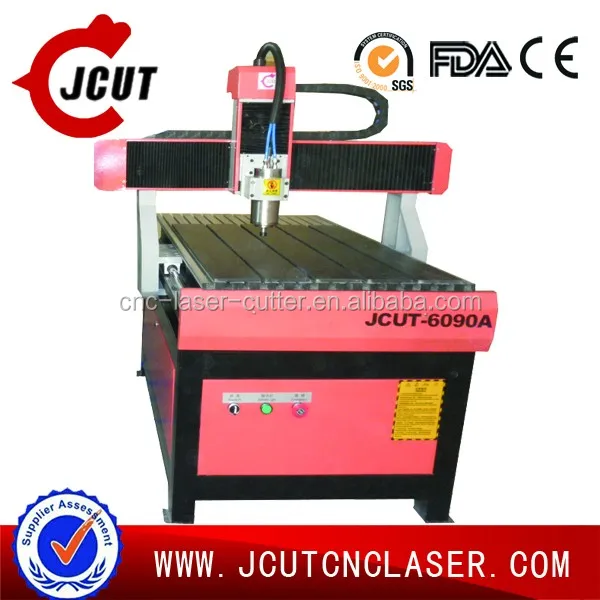

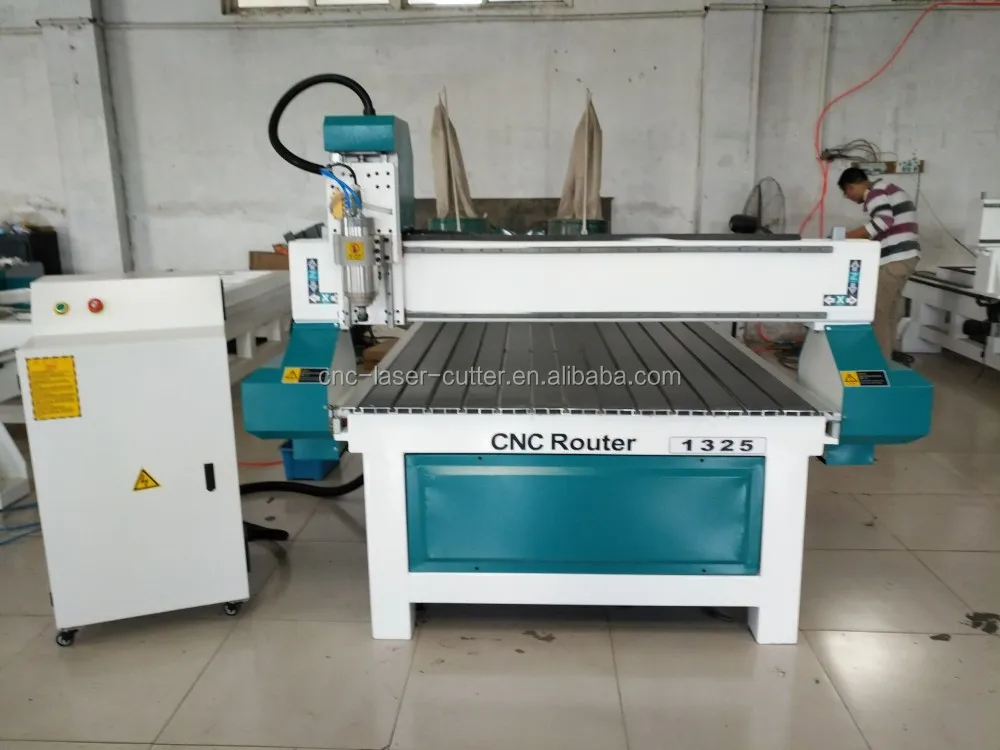

Products show

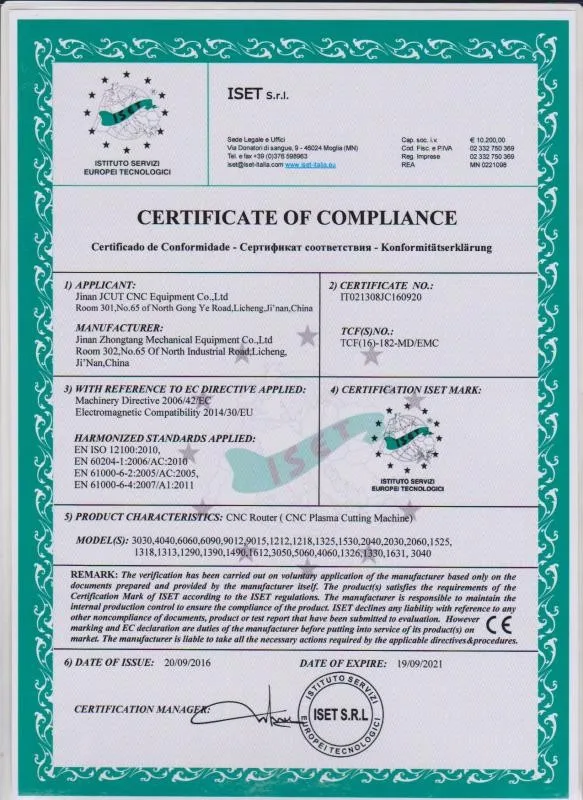

CE Certifications

It was designated as “China TOP” that Jinan JCUT CNC Equipment by the Chinese Ministry of Commerce.It is a field certified export enterprises with enterprise standsrd of CE and ISO9000by SGS of European. It is a global integrity export enterprise,which is value to be believed by all my friends.

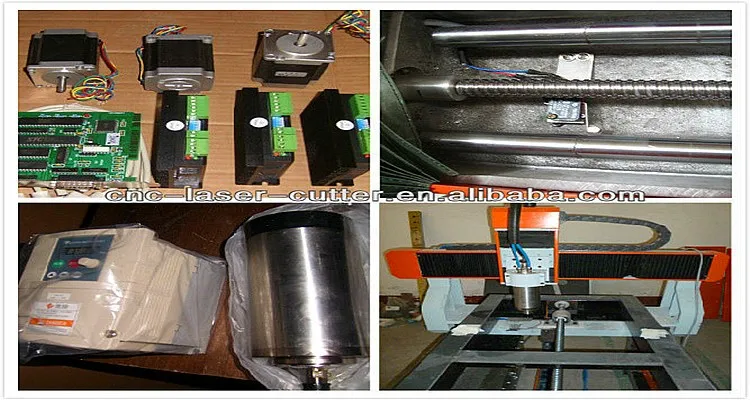

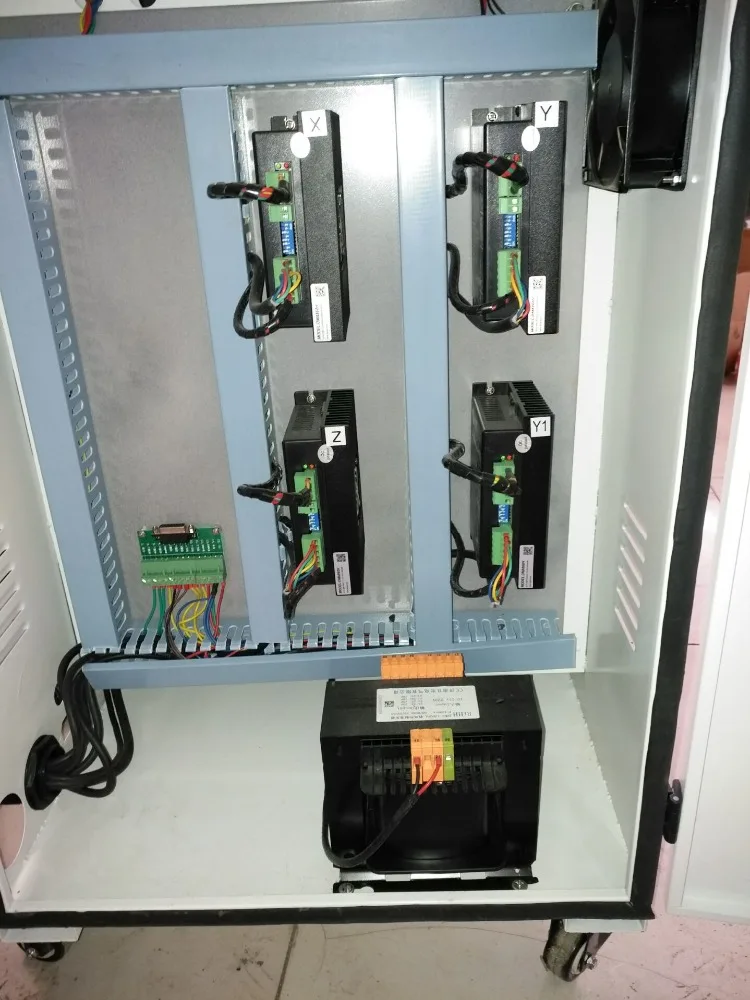

Detailed Images
Our Company

Factory.

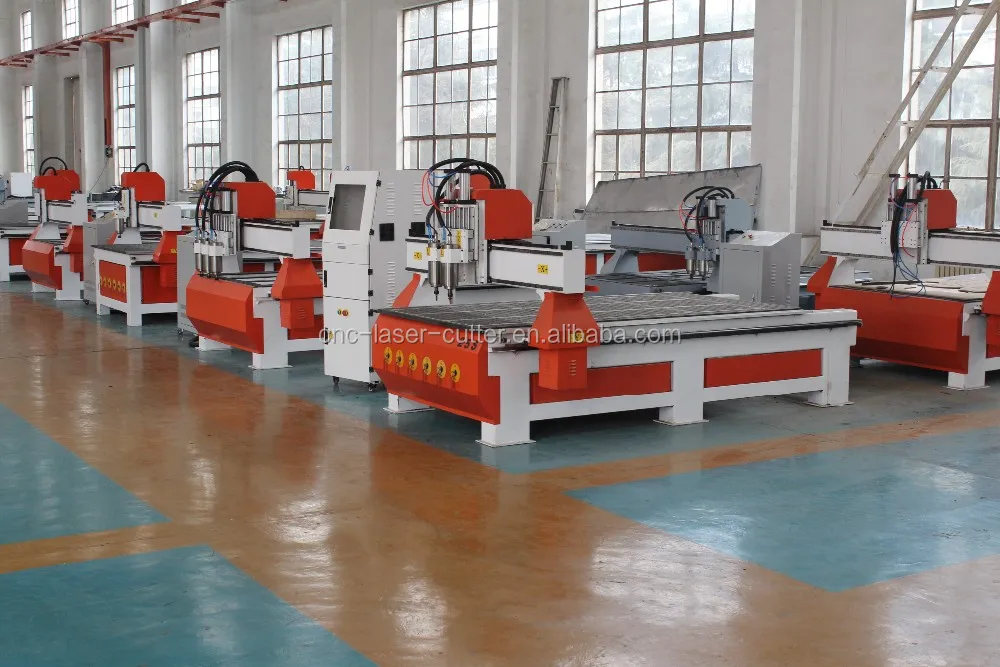

Our factory

Workshop.

Our workshop

Warehouse.

Our warehouse

Team.

Our team

This is manufacturer Jinan JCUT CNC Equipment Co .,Ltd with large CNC engraving and cutting equipments. Its main product have stone engraving machine ,wood engraving machine, advertising engraving machine, laser engraving machine, laser cutting machine ,plasma cutting machine, PCB engraving machine, CNC mould machine, three-dimensional cylindrical engraving machine, all kinds of CNC machining center and so on. Many natural and chemical materials can be processed, such as marble, wood, acrylic,metal and the like.

Our Service

Cheap sale small CNC woodworking/advertisment/metal engraving and cutting machine JCUT-6090(600X900x150mm)

We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.

All JCUT CNC machine have one year warranty.But consumables as follow not include in warranty ranges:
A.CNC router machine's cutting tools and other wearing part s
B.Laser machine's lens and co2 laser tube
C.Plasma cutting machine's nozzle and electrodes
We provide 24-hour service, you can contact the above. At the same time, we guarantee the fastest reply to you and help you solve the problem of the machine.

Packing & Delivery

Cheap sale small CNC woodworking/advertisment/metal engraving and cutting machine JCUT-6090(600X900x150mm)

Packing :
Volume: 1400mm X 1250mm X 1600mm
Gross: 800Kg
Plastic film wrapping machine, packed in wooden cases, can be packaged according to customer requirements. Shipment take high-resolution photos and video.
Delivery:
CNC orders will generally be made within one week.
Shipping time depends on your location, but will usually take between one day and one week.
